IDEAL FOR
vehicles, trailers, equipment, and mobile assets.
Tractors
Trucks
Buses
Cars
The VMDR-844 is a 4-channel ruggedized mobile NVR / DVR system built for fleets that need dependable multi-camera recording across commercial vehicles, trailers, equipment, and remote assets. With built-in LTE cellular connectivity, the system connects vehicle video, GPS location, and sensor event data to VentraCloud, Ventra’s optional cloud-based video telematics platform for live viewing, GPS tracking, remote playback, and event video review.
With dual SD card storage supporting up to 1TB total capacity, the VMDR-844 records continuously in a loop for dependable local video retention. This gives fleets local recording on the vehicle while adding cloud access when remote video review, event clips, GPS history, and centralized visibility are needed.

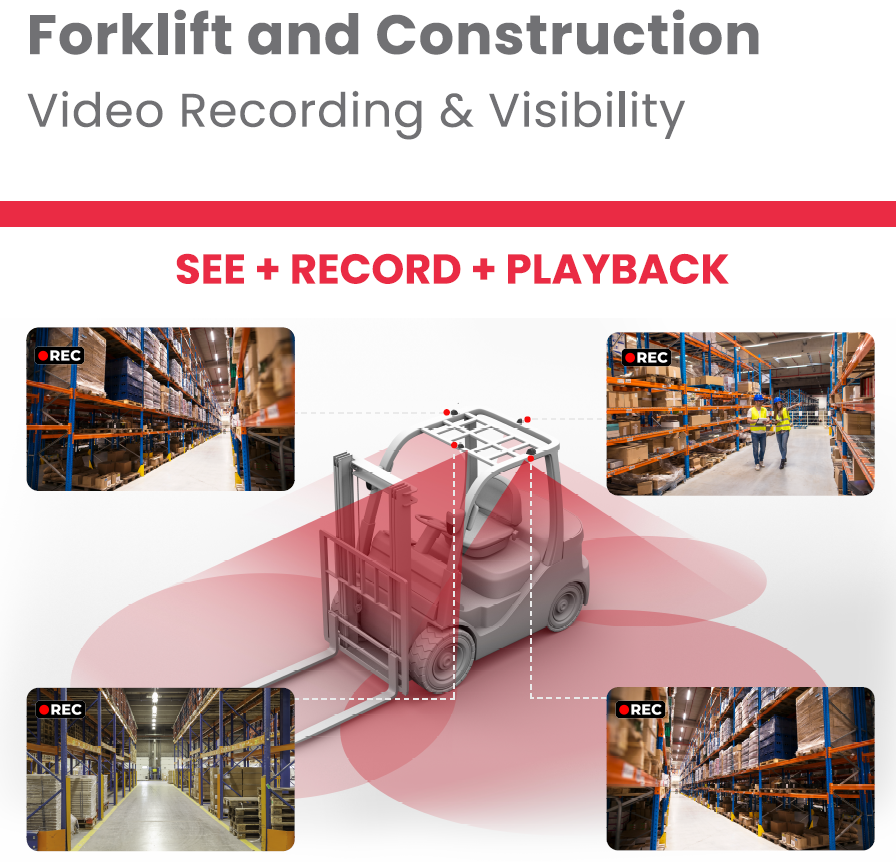

Ventra mobile recording systems are used across trucks, trailers, forklifts, construction vehicles, off-highway vehicles, and other specialized fleet applications where standard dashcams may not provide enough camera coverage or storage flexibility.
KNOW – WHO, WHAT, WHERE & HOW
Benefits of VMDR-844 Fleet Video Recording

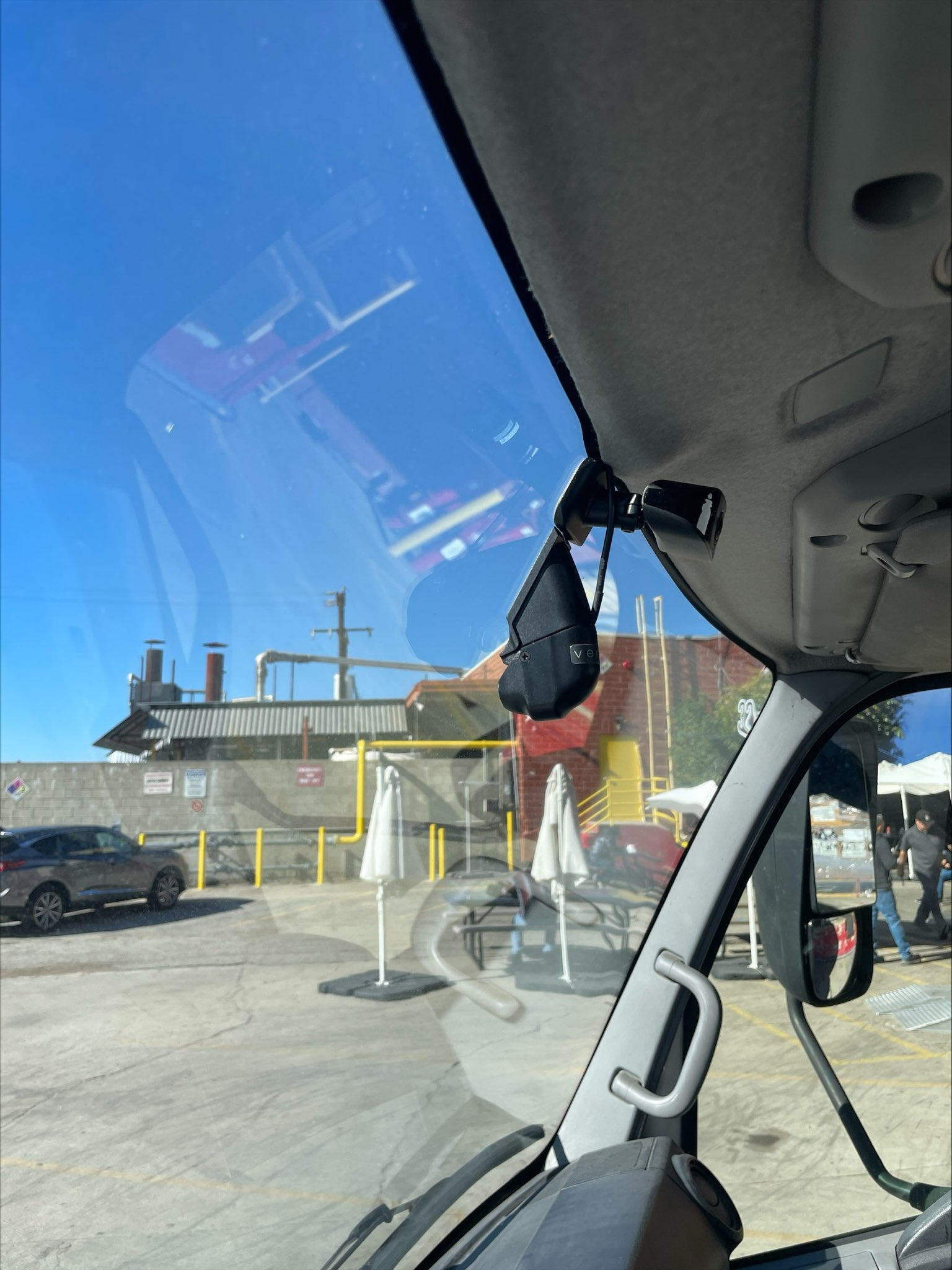

- Multi-camera recording for road, side, rear, interior, cargo-area, and equipment-facing views

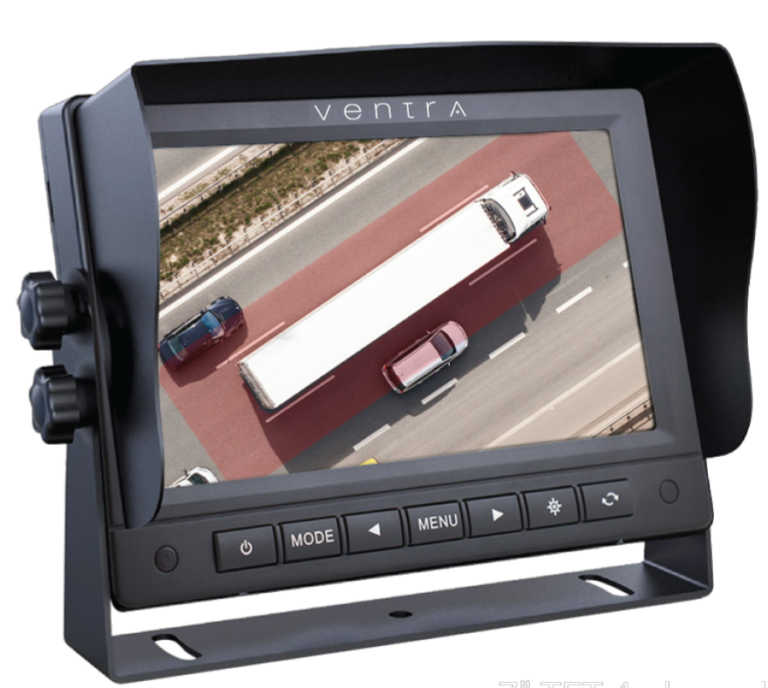

- In-cab LCD monitor for side and rear camera visibility
- Local video retention with SD card storage up to 1TB total capacity
- Built-in LTE connectivity for optional VentraCloud remote video access

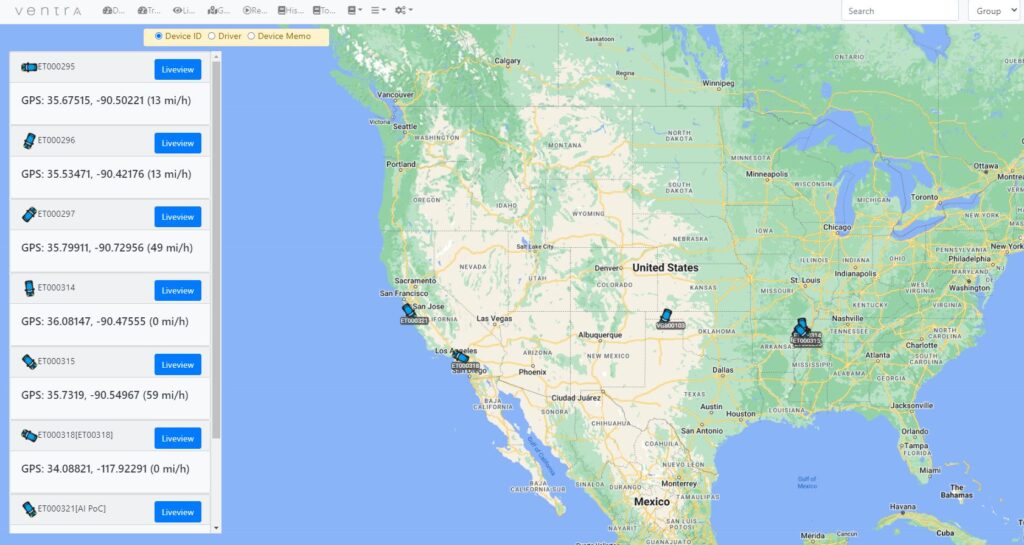

- GPS location and speed history for trip and event context
- Event recording for impact, overspeed, and alarm-triggered events
- For incident review, claims documentation, cargo visibility, driver coaching, and operations review
Real-Time Visibility

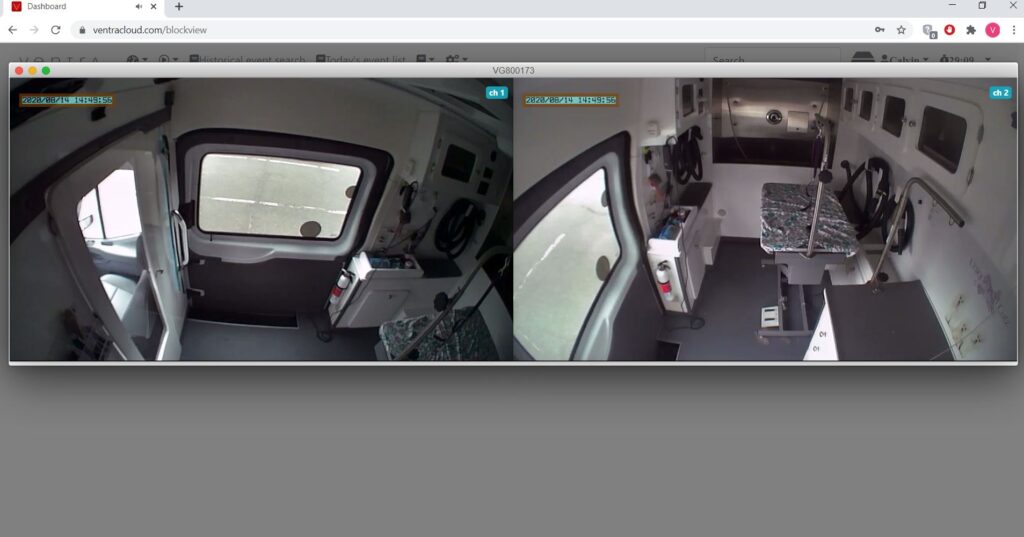

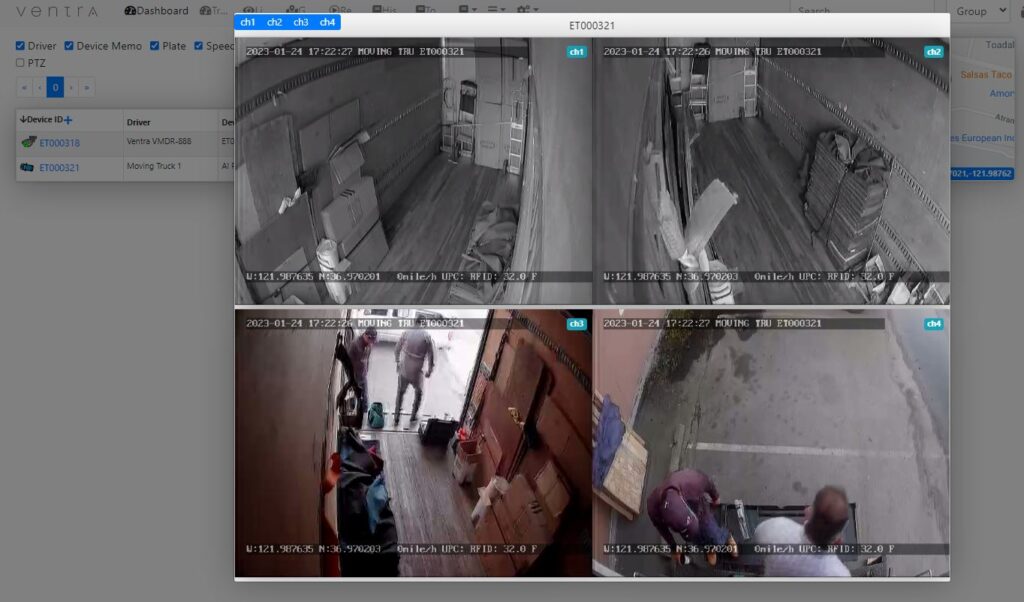

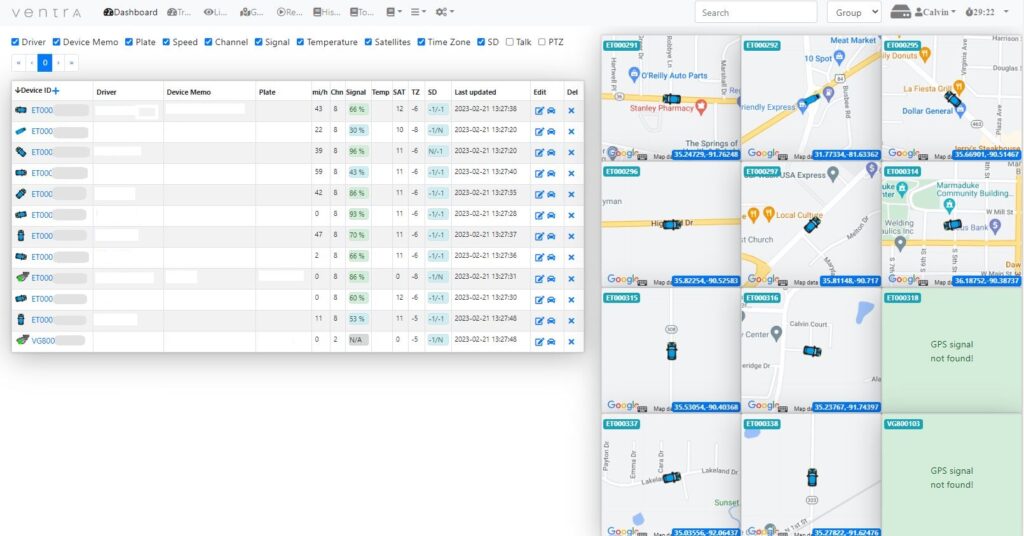

With optional VentraCloud service, VMDR-844 can support remote access to selected live video, recorded clips, GPS history, event footage, and vehicle activity. Fleet teams can use VentraCloud to review incidents, cargo access, delivery disputes, driver events, yard activity, and route operations without always needing to physically retrieve footage from the vehicle.
Applications & Industries
Logistics, Delivery and Commercial Fleets

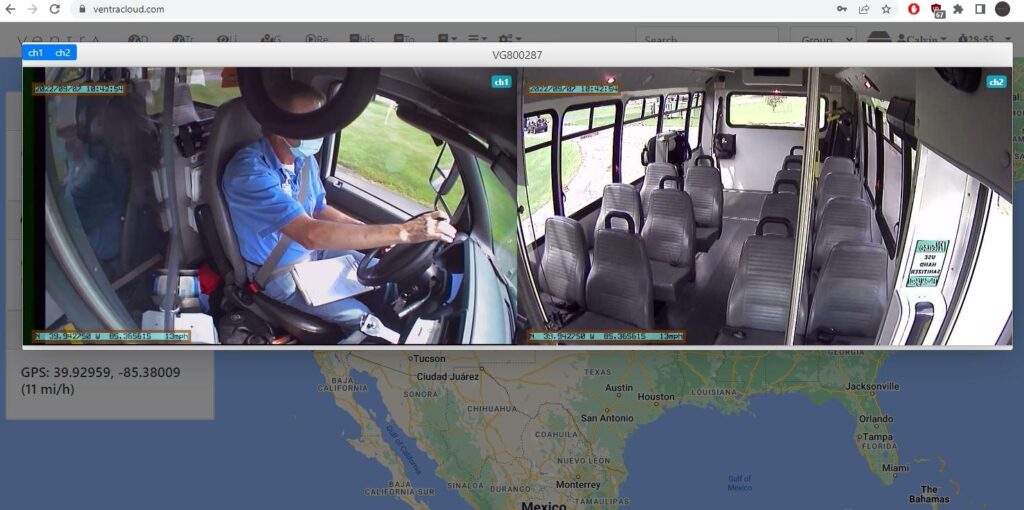

Mass Transit, Shuttle and School Bus
Law Enforcement and First Responders
And More... Contact a Ventra Representative Today!
- Built-in cellular connectivity for optional VentraCloud remote video access
- Dual SD card slots with up to 1TB total storage
- 1080p / 720p HD video recording
- Records video, audio, speed, route, and GPS location
- Built-in G-sensor for impact-triggered recording
- Passive GPS receiver for speed and vehicle location
- Event recording for overspeed, impact, and alarm input triggers
- 30-second event video clip upload to VentraCloud when subscribed and configured
- Rugged solid-state design
- Compact size / small footprint
- Video output for optional LCD monitor
- Alarm trigger cable for third-party external sensors such as door, lock, or light inputs
- 1 x 4CH MDVR
- SD Card(s) – Qty depend on model
- 1 x Embedded LTE
- 1 x Passive GPS Receiver
- 1 x Video Out RCA Connection
- 1 x Alarm Trigger Cable
- 1 x Power Cable
- 1 x PC Desktop Viewing Software
- 1 x Remote Control
| Model | SD Card Included |
|---|---|
| VMDR-844-128 | 128GB x 1 |
| VMDR-844-256 | 256GB x 1 |
| VMDR-844-512 | 512GB x 1 |
| VMDR-844-1TB | 512GB x 2 |
| Channels | 4CH 1080P/ 720P AHD |
| Record Frame Rate / Second (FPS) | 1080P @ 4CH @ 30FPS /CH, 720P @ 4 CH @ 30FPS / CH |
| Record Resolution | 1920 x 1080 (1080P) / 1280 x 720 (720P) / 960H |
| Video Format | NTSC / PAL |
| OS | Embedded Linux |
| Storage SD Card | SD Card x 2 (Max support 512 GB per SD Card) Speed: Class U1 or faster |
| G-Sensor Function | Yes (Included) |
| Camera Power Output | 12V / 750mA |
| Video Output | VGA OR CVBS output X 1 |
| Audio Input | Audio Input X 1 / Optional Ext. Mic Sold Separately |
| Audio Output | Audio Output X 1 |
| Alarm I/O | Alarm Input x 4(N.C) Alarm Output x1 (N.C) |
| Input (I/O) | N/A |
| Operation Interface | GUI OSD |
| Language | English |
| Display Mode | 1CH / 4CH / 9CH |
| Simplex Mode | Record / Playback |
| Playback Mode | Time / Date, Event |
| Playback Full Screen | Support |
| LED Indicator | 4 LED (LAN, REC, GPS, POWER) |
| Event Triggers | Over Speed, Impact, Alarm Trigger (If Utilized) |
| Battery | N/A |
| Delay Shut Off Timer | Built-in (Programmable) |
| Power | 8V – 60V DC (Input), 12V DC Output |
| Power Consumption | Working: 8 – 36VDC, 6W (12V, 0.9A) excluding cameras and monitor, standby: >10mA / 12.6V |

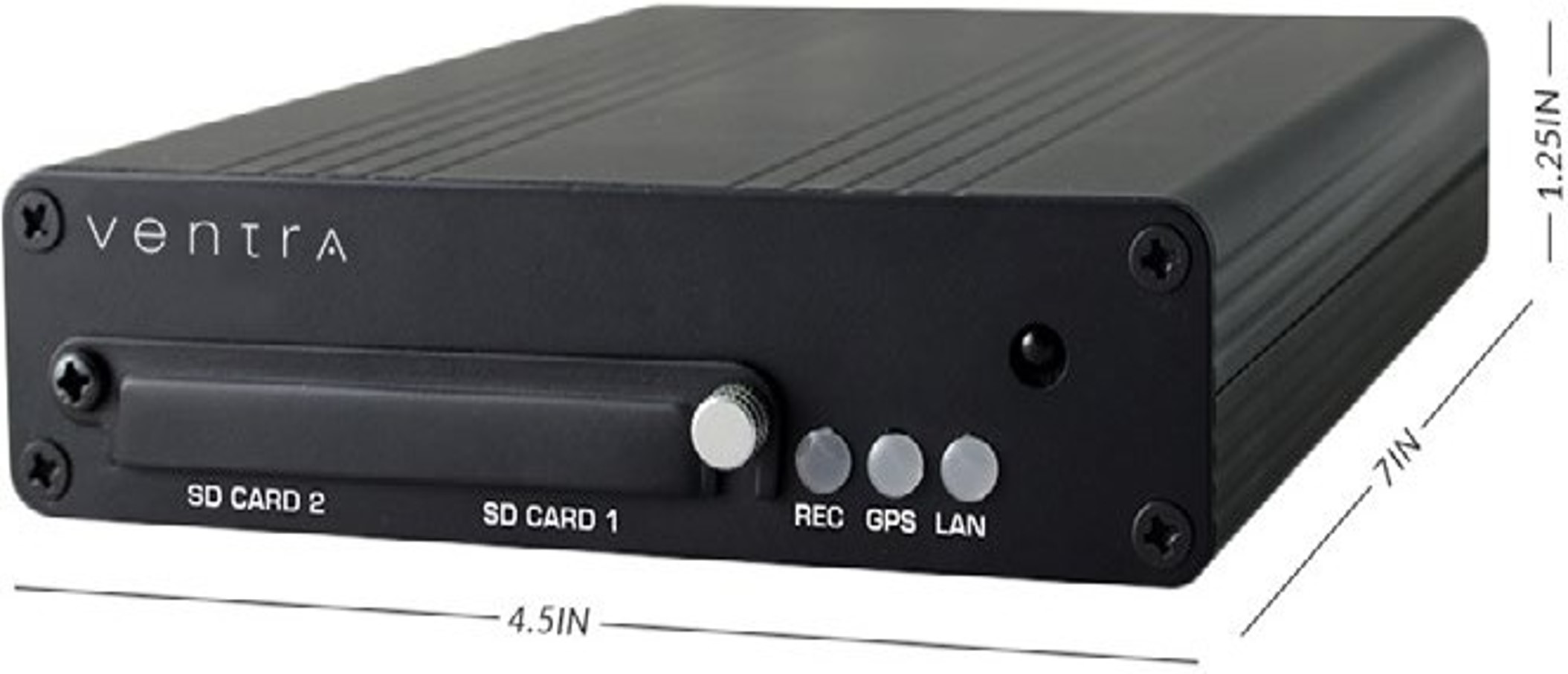

| Dimension | 7″ x 4.5″ x 1.25″ W x D x H |
| Temperature (Operation) | -4F -149F(-20C – 65C) |
| Signal Loss Detection | Yes |
| IR Control | Yes (Included) |
Video Playback Option

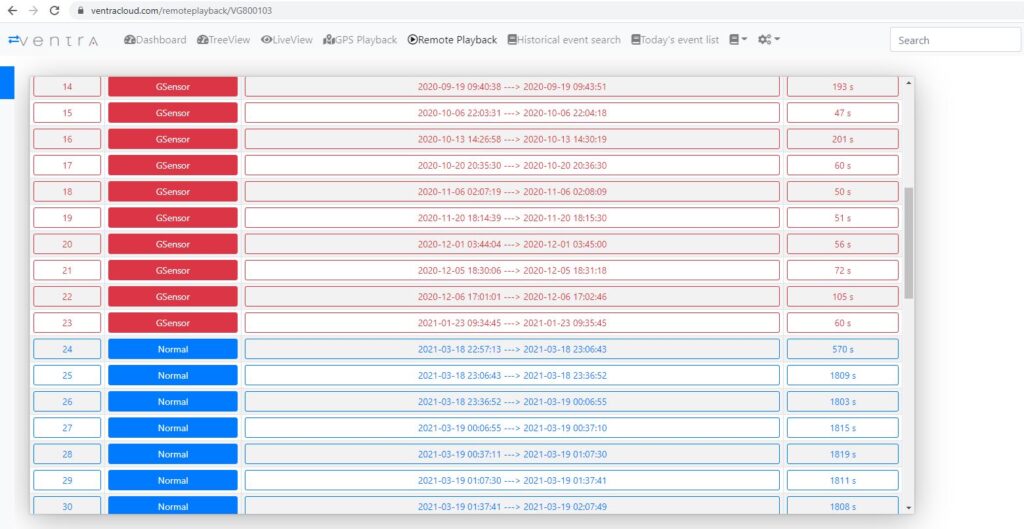

Recorded videos can be viewed directly from the VMDR if an external LCD monitor is connected to the system. SD card recordings can also be viewed on a PC via the VMDR desktop software. Footage can also be conveniently accessed and downloaded remotely via VentraCloud service.
Affordable monthly plans and 6 month service contract
